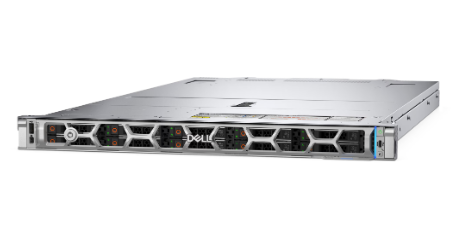

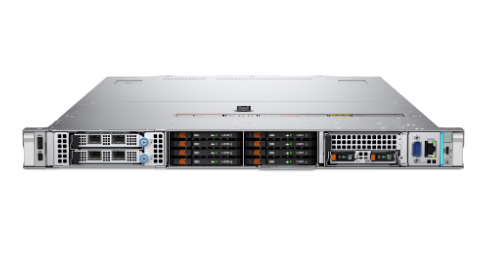

PowerEdge R670 is a 1U, two-socket rack server

Boost Datacenter Efficiencies and Performance
The PowerEdge R670 is a 1U, dual-socket rack server designed for high performance computing with optimal
power efficiency and balanced performance to boost your data center productivity. It balances advanced computing
power with virtulization, cloud-native applications, all flash SDS, hyperscale workloads and scale out databases.
Purpose-built for enterprise and scalable infrastructures, the PowerEdge R670 offers standardization that easily
integrates into existing environments, equipped with two Intel® Xeon® 6 processors with E-cores and P-cores, it offers
up to 1.69x better performance per watt than previous models, improving power efficiency and increasing rack density.
The addition of GPU support further amplifies computational power, ensuring high performance with lower energy use.
These servers are available in rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle
improves serviceability, reduces maintenance time, and enhances efficiency, reliability, and uptime, supporting your
sustainability goals by optimizing cooling and energy use. It also features ’s Smart Power and Cooling Technology,
optimized for air cooling to significantly reduce energy consumption, contributing to long-term operational savings.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and
factory-to-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while
Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by
reducing process and information silos in order to focus on growing the business. The OpenManage portfolio is
the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your
technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the
PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower
your operation costs. We even make it easy to retire legacy systems responsibly with Technologies.
Rest easier with Technologies Services
Maximize your PowerEdge Servers with comprehensive services designed to meet you wherever you are. Accelerate
time to value in achieving high AI use cases with Professional Services for AI, choose from tailored deployment
options with the ProDeploy Suite, receive proactive and predictive
support with our ProSupport Suite, and so much more with our services
available across 170 locations and backed by our 60K+ employees and
partners.
Specification Sheet
PowerEdge R670
The PowerEdge R670 is powered
by Intel Xeon 6 Processors, DDR5
Memory, NVMe BOSS, Energy Star
compliant and advanced cooling.
Ideal for:
• Virtualization
• Cloud-native applications
• All-flash SDS
• Hyperscale workloads
• Scale out Databases
NOTE: This document provides a comprehensive list of product features. However, features marked with an asterisk (*) may not be available at
launch but introduced in future updates. Please note that this document does not confirm the availability or release timeline of any feature. For the
most accurate and up-to-date information on feature availability, please refer to the product configurator page on .com.
Feature Technical Specifications
Processor Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage controllers • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1,
2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
• Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
Front Bays • No Backplane configuration
• Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration
Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
• Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB
• Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe Raid max 491.52 TB
• 8 x 2.5-inch Universal 491.52 TB
• Up to 10 x 2.5 inch SATA max 38.4 TB
• Up to 2 x EDSFF E3.S Gen5 NVMe in the rear max 122.88 TB
Hot swap Power
Supplies
• 1500 W Titanium 100—240 VAC or 240 VDC
• 1100 W Titanium 100—240 VAC or 240 VDC
• 800 W Titanium 100—240 VAC or 240 VDC
• 1100 W Platinum 100—240 VAC or 240 VDC
• 800 W Platinum 100—240 VAC or 240 VDC
• 1800 W HLAC Titanium 200—240 VAC or 240 VDC*
• 1500 W 277 VAC or 336 VDC*
• 1400 W LVDC -48 — -60 VDC
Cooling Options • Air cooling and Direct Liquid Cooling
• Note : DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans • High performance Silver (HPR SLVR) or Standard (STD) fans
• Up to 4 sets (dual fan module) hot swappable fans
Dimensions and
Weight
Height – 42.8 mm (1.69 inches)
Width – 482 mm (18.98 inches)
Weight – 20.42 kg (45.02 pounds)
Depth (for rear I/O configuration)
• 816.92 mm (32.20 inches) with bezel
• 815.14 mm (32.09 inches) without bezel
Depth (for front I/O configuration)
• 829.44 mm (32.66 inches) without bezel
Note: The front I/O configuration does not support the bezel.
Form Factor 1U rack server
Embedded
Management
• iDRAC
• iDRAC Direct
• iDRAC RESTful API with Redfish
• RACADM CLI
• iDRAC Service Module (iSM)
• Quick Sync 2 wireless module
• NativeEdge Endpoint*
• NativeEdge Orchestrator*
Bezel Optional security bezel
Security • Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection
Network options 2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE*
Slot 31 1 x16 OCP 3.0 on front riser
Slot 32 1 x16 OCP 3.0 on front riser
Slot 2 1 x16 OCP 3.0
Slot 5 1 x8 Gen5 OCP 3.0 or 1 x16 Gen5 OCP 3.0
BOSS Slot 34: Front BOSS slot or
Slot 3: Rear BOSS slot
GPU options Up to 3 x 75 W SW
DPU options • NVIDIA BlueField-3 2x200 GbE B3220
• NVIDIA BlueField-3 1x400 GbE B3140H
Ports Front Ports:
• 1 x USB 2.0 Type C port
• 1 x USB 2.0 Type A port (optional)
• 1 x Mini-DisplayPort (optional)
• 1 x DB9 Serial (with front I/O configuration)
• 1 x Dedicated ethernet port for iDRAC management

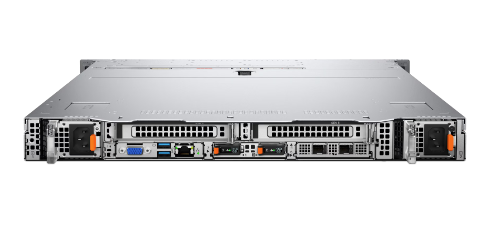

Rear Ports:
• 1 x Dedicated ethernet port for iDRAC management
• 1 x VGA
• 2 x USB 3.1 Type A ports
Internal Ports:
• 1 x USB 3.1 Type A port
Feature Technical Specifications
PCIe • Up to 2 x16 Gen5 PCIe slots
• Slot 31 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
• Slot 32 1 x16 Full Height - Half Length or Full Height - Full Length or 1 x16 OCP 3.0 on front riser
• Up to 3 x16 or 2 x8 Gen5 PCIe slots
• Slot 1 1 x16 Full Height - Half Length or Full Height - Full Length or 3 x16 or 1 x8 Low Profile - Half Length
• Slot 2 1 x16 or 1 x8 Low Profile - Half Length or 1 x16 OCP 3.0
• Slot 4 1 x16 Full Height - Half Length or 1 x16 Low Profile - Half Length
Operating System
and Hypervisors
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V (P-Core only)
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• NativeEdge OS*
 For specifications and interoperability details, see .com/OSsupport
OEM-ready version
available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit .com -> Solutions -> OEM Solutions.
*Features marked with an asterisk (*) may not be available at product launch. Please refer to the product configurator
page on .com to confirm feature availability.
NOTE: From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you
with our OEMR platforms, while XL platforms provide extended transitions and stability for OEM Solutions customers.
For more information, visit .com -> Solutions -> OEM Solutions.
