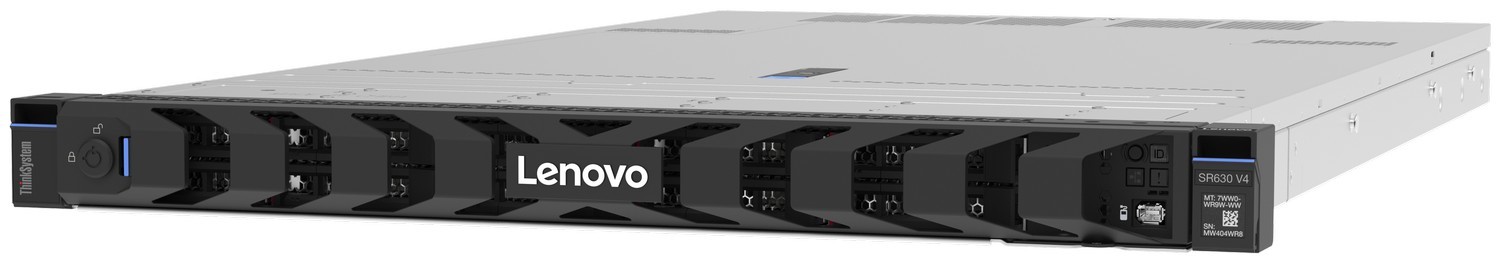

SR630 V4 1U Server / 2-Socket / Support Customize
| Place of Origin | China |
|---|---|
| Brand Name | ThinkSystem |
| Model Number | 7DG9CTO1WW / 7DG8CTO1WW / 7DLMCTO1WW |
| Minimum Order Quantity | 1 Pc |
| Packaging Details | Cardboard Package |
| Delivery Time | 4-6 Weeks |
| Payment Terms | T/T |
Product Details
| Highlight | SR630 V4 1U server with 2-socket,Intel platform 1U server,customizable SR630 V4 server |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| 7DG9CTO1WW | ThinkSystem SR630 V4 – 3-year base warranty | |
|---|---|---|
| 7DG8CTO1WW | ThinkSystem SR630 V4 – 1-year base warranty | |
| 7DLMCTO1WW | ThinkSystem SR630 V4 – SAP HANA configurations with 3-year base warranty |
Product Description
SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
| Components | Specification |
|---|---|
| Machine types |
|
| Form factor | 1U rack |
| Processor |
One or two Intel Xeon 6700P-series or 6500P-series processors (formerly codenamed "Granite Rapids"). Supports processors up to 86 cores and 172 threads, core speeds of up to 4.0 GHz, and TDP ratings of up to 350 W. One or two Intel Xeon 6700E-series processors (formerly codenamed "Sierra Forest"). Supports processors up to 144 cores, core speeds of up to 2.4 GHz, and TDP ratings of up to 330 W. |
| Chipset | None. Integrated into the processor |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). TruDDR5 RDIMMs are supported. DIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC. Xeon 6500P and 6700P-series processors also support MRDIMMs up to 8000 MHz at 1 DPC (no support for 2 DPC). Xeon 6500P and 6700P-series processors also support up to 8x CXL 2.0 memory DIMMs (4 per processor) installed in E3.S 2T drive bays. |
| Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs), and memory mirroring. |
| Disk drive bays |
Up to 12x 2.5-inch hot-swap drive bays plus M.2 drives:
AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support NVMe drives. Rear drive bays can be used in conjunction with 2.5-inch front drive bays. The server supports up to 12x NVMe drives all with direct connections (no oversubscription). |
| Maximum internal storage |
|
| Storage controllers |
|
| Optical drive bays | No internal optical drive. |
| Tape drive bays | No internal backup drive. |
| Network interfaces | Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface, either x8 or x16. Support a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port of each installed OCP adapter can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCI Expansion slots |
Up to 3x slots, all at the rear, plus 2 OCP slots. All slots are PCIe 5.0. Choices for rear-access slots:
With support for open-loop water cooling, rear slots are as follows:
All configurations include at the rear of the server:
For 2.5-inch front drive configurations, the server supports the installation of a CFF RAID adapter or HBA in a dedicated area that does not consume any of the rear PCIe slots. Note: Some slots are not available in a 1-processor configuration. |
| GPU support | Support for up to 3x single-wide GPUs |
| Ports |
Front: External diagnostics port, optional 2x USB 3 (5 Gb/s) port, one supports XCC local management, optional Mini DisplayPort 1.1a video port. Rear: 2x USB 3 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in a slot). Support for an optional adapter to share an incoming remote management network connection across 4 servers (installs in an OCP slot). Internal: Optional 1x USB 3 (5 Gb/s) connector for operating system or license key purposes |
| Cooling | Up to 8x N+1 dual-rotor or single-rotor hot-swap 40 mm fans, implemented as 2-in-1 fan modules. Fans are N+1 rotor redundant. Fan select is configuration dependent. There is also one fan integrated in each power supply. For customers with water infrastructure in their data center, the server also supports open-loop water cooling for efficient heat removal. |
| Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 800W, 1300W, 2000W AC options. All AC power supplies support 230V power; some also support 115V input supply. In China only, all power supply options support 240 V DC. Support for HVDC and -48V DC power supply options. |
| Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 3 management controller. Two video ports (rear VGA and optional front Mini DisplayPort); both can be used simultaneously if desired. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Clarity Controller 3 (XCC3) embedded management based on the ASPEED AST2600 baseboard management controller (BMC) and OpenBMC, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC3 Premier to enable remote control functions and other features. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional service upgrades are available through Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for hardware and some third-party applications. |
| Dimensions | Width: 440 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 788 mm (31 in.). Servers with E3.S front drives have a longer depth drive. |
| Weight |
Maximum weight:
|
