ThinkSystem SR650 V4 2U rack server

  • ThinkSystem SR650 V4 2U rack server
  • ThinkSystem SR650 V4 2U rack server
  • ThinkSystem SR650 V4 2U rack server
Brand Name ThinkSystem
Model Number SR650V4
Minimum Order Quantity 1
Delivery Time 4-6 WEEKS
Payment Terms T/T
Supply Ability 1-500
Product Details
Highlight

Lenovo ThinkSystem SR650 V4 server

,

2U rack server with warranty

,

Lenovo SR650 V4 rackmount server
Leave a Message
Product Description

ThinkSystem SR650 V4 is a versatile 2U rack server powered by Intel® Xeon® 6 processors.
Optimized for Enterprise Workloads: Ideal for virtualization, databases, hybrid cloud, and analytics.
Flexible Scalability: Supports up to 32x TruDDR5 RDIMMs, 36x NVMe drives, and 10x PCIe Gen5 slots.
Sustainability and Reliability: Optional Neptune® cooling and six nines uptime reliability for reduced costs and environmental impact.
The SR650 V4 offers scalability, efficiency, and security, delivering exceptional value for enterprises.





Specifications
Form Factor/Height


2U rack server


Processors

Up to 2x Intel® Xeon® 6 processors, up to 86 cores and 350W TDP

Drive Bays

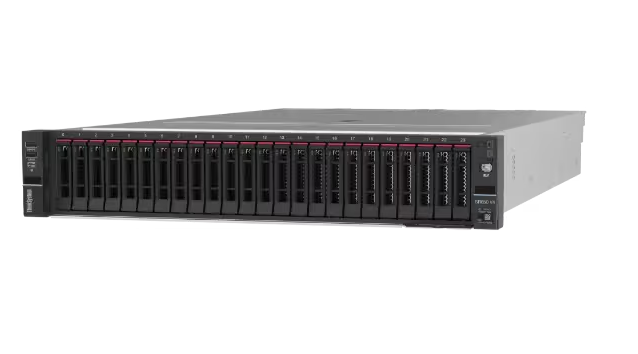

  • Front: Up to 24x 2.5″ SAS/SATA/NVMe, or 32x E3.S NVMe, or 12x 3.5″ SAS/SATA

  • Mid: Up to 8x2.5″ SAS/SATA/NVMe

  • Rear: Up to 8x 2.5″ or 4x 3.5″ SAS/SATA/NVMe

  • Bootable device: Up to 2x M.2 SATA/NVMe drives with RAID support, optional hot swap

  • Supports Direct NVMe, VROC/VMD


Memory

  • Supports up to 32x TruDDR5 3DS/RDIMMs with speeds up to 6400MHz; up to 16x TruDDR5 MRDIMMs with speeds up to 8000MHz.

  • Maximum capacity up to 8TB

Expansion Slots

  • Up to 10x PCIe Gen5 slots

  • 2x OCP 3.0 slots

GPUs

Up to 10x single-width GPUs or 2x double-width GPUs

Network Interface

  • OCP adapter installed in the OCP 3.0 slot

  • Networking PCIe adapters

Ports

Front:

  • Optional 2x USB 3.0 with XClarity Mobile support and 1x mini DP

  • Optional External diagnostics handset port

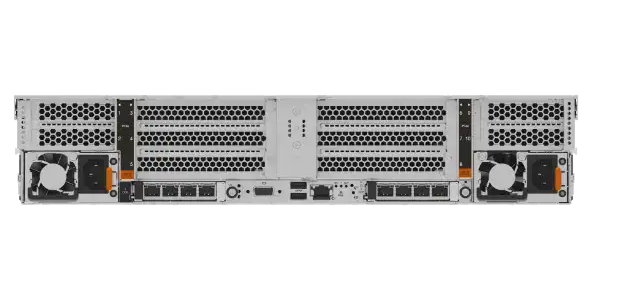

Rear:

  • 2x USB 3.0 G1

  • VGA

  • 1GbE RJ-45 dedicated management port

  • Optional: 2nd 1GbE management port in OCP slot location

  • Optional Serial port

HBA/RAID Support

  • VROC for NVMe SW RAID (0,1,5,10)

  • Standard and internal PCIe RAID/HBA adapters

Cooling Solution

Neptune® Core and Neptune® Air technology

Power

Dual Redundant AC & DC (multiple wattages); Platinum & Titanium efficiency ratings

Systems Management

XClarity Controller

OS Support

  • Microsoft

  • SUSE

  • Red Hat

  • VMware

Limited Warranty

  • 1-year & 3-year customer replaceable unit and onsite service,

  • Next business day 9am to 5pm;

  • Optional service upgrades
