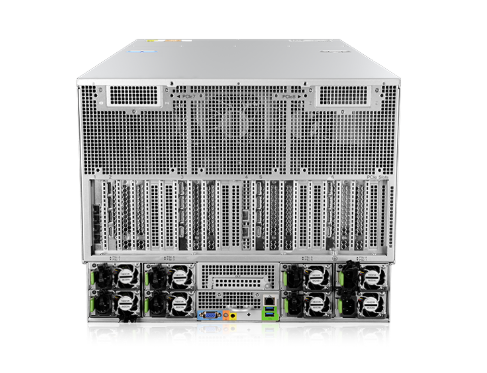

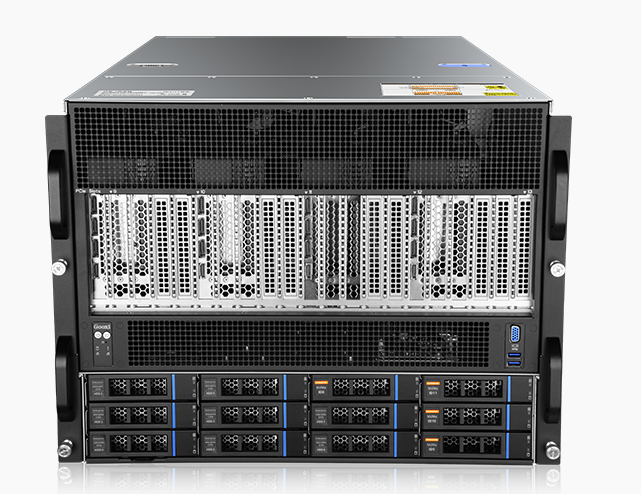

SY8108G-D12R-G4 Intel AI server 8 GPU Server
Product Details
Product Description
Integrated Training and Inference
Direct CPU-GPU connection, supports 8 GPUs with 600W power each in dual-width, 3-width, 3.5-width, and 4.5-width form factors. Meets the requirements of large model training, AI inference, graphics processing, and generative AI. Ideal for scenarios such as large models, cloud gaming, artificial intelligence, cloud computing, virtualization, big data analytics, and digital twin applications.
| System Model | SY8108G-D12R-G4 |
| Processor | Supports 1 or 2 fourth- or fifth-generation Intel® Xeon® Scalable processors with a maximum TDP of 350W. |
| Chipset | Intel® C741 Series Server-Specific Chipset |

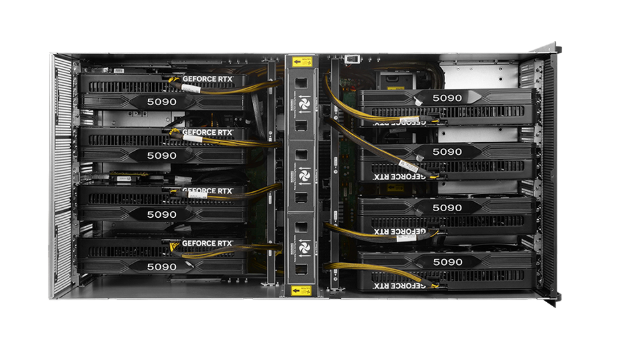

| GPU Card | Passthrough 8-GPU Server (Fan Version): Supports 8× 600W 3-width, 3.3-width, 3.5-width, or 4.5-width RTX 5090 fan GPUs or other 600W fan GPUs. Features a 4+4 front-rear separated upper and lower airflow layout. Passthrough 8-GPU Server (Blower Version): Supports 8× 600W 2-width or 2.5- width RTX 5090 blower GPUs or other 600W blower GPUs. Features an 8-GPU rear-aligned centralized airflow cooling layout. |
| Memory | 32 DDR5 memory slots, supporting DDR5 4400/4800/5600 MHz memory. Would you also like a version that's even more streamlined for a tech spec table if ne |
| Storage Controller | 2 Slimline 4x ports (SATA), 2 M.2 slots (2280/22110, SATA/PCIe 3.0 x1). |
| Storage | 12 Hot-Swap 3.5"/2.5" SAS/SATA/NVMe drives. |
| I/O Ports | Front Ports: 2x USB 3.0, 1x VGA Rear Ports: 1x Serial Port, 2x USB 3.0, 1x VGA, 1x RJ45 Management Port (optional upgrade: 2x 10G RJ45 Network Ports) |
| PCIe Expansion | Supports up to 13 PCIe expansion slots. |
| Power Supply | Supports 8 CRPS 1600W/2200W/2600W power modules, with hot-swappable and N+N, N+M redundancy modes. |
| Fan | Standard 6*6056 and 6*12038 fans. |
| Management | 1 dedicated RJ45 management network port. |
| Security | Supports TPM 2.0 module, chassis intrusion alarm, BMC/BIOS redundancy. |
| Operating System | MW Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, etc |
| Server Size | 910 x 446 x 364.6mm (D * W * H). |
| Working Temperature | Operating temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: -40ºC - 70ºC. |
